Specification		Bed Length – 1000U mm	Bed Length – 2000U mm	Bed Length – 3000U mm	Bed Length – 4000U mm
Capacity	Maximum Swing	1040 mm / 40.94 in	1040 mm / 40.94 in	1040 mm / 40.94 in	1040 mm / 40.94 in
	Maximum Machining Diameter	910 mm / 35.830 in	910 mm / 35.830 in	910 mm / 35.830 in	910 mm / 35.830 in
	Maximum Machining Length	1047 mm / 41.220 in	2040 mm / 80.310 in	3175 mm / 125.000 in	4064 mm / 160.000 in
Main Spindle	Chuck Size	18 in	18 in	18 in	18 in
Main Spindle	Maximum Speed	1600 rpm	1600 rpm	1600 rpm	1600 rpm
Turret (Upper)	Number of Tools	12	12	12	12
Feed Axes	Travel (X Axis)	465 mm / 18.31 in	465 mm / 18.31 in	465 mm / 18.31 in	465 mm / 18.31 in
Feed Axes	Travel (Z Axis)	1175 mm / 46.26 in	2165 mm / 85.24 in	3300 mm / 129.92 in	4190 mm / 164.96 in

QTE-200 SG Lathe

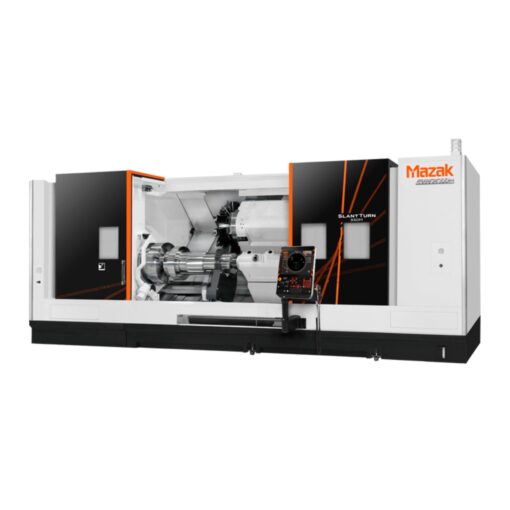

Lathe machine Mazak Slant Turn 500 (New)
