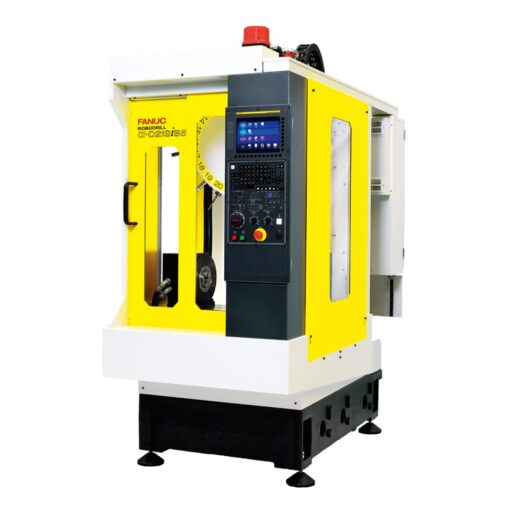

The FANUC ROBODRILL α-DiB Plus series (Standard version/Advanced version) is high-speed, high-precision and high-efficiency Compact Machining center with spindle taper size of No.30.
| Travel [mm] | Control block | ||||
| X-axis | 300 | 500 | 700 | ||
|---|---|---|---|---|---|
| Y-axis | 300+100 | 400 | |||
| Z-axis | 330 | ||||
| Tool storage capacity | 21 tools | α-D21SiB5 | α-D21MiB5 | α-D21LiB5 | Series 31i-B5 |
| 14 tools | α-D14SiB5 | α-D14MiB5 | α-D14LiB5 | ||
| 21 tools | α-D21SiB | α-D21MiB | α-D21LiB | Series 31i-B | |
| 14 tools | α-D14SiB | α-D14MiB | α-D14LiB | ||
Wide variety of spindle
Optimum spindle selectable according to application
| Spindle spec. | Max. speed | Application |
|---|---|---|
| Standard | 10000 min-1 | Wide range machining use |
| High torque | Heavy machining of steel parts (Max. 100N·m) | |
| High acceleration | High speed and high efficiency machining of aluminum parts | |
| Tapping | 12000 min-1 | High cycle light machining of aluminum parts |
| High speed | 24000 min-1 | High speed machining with small diameter tools |
