α D21MiB5

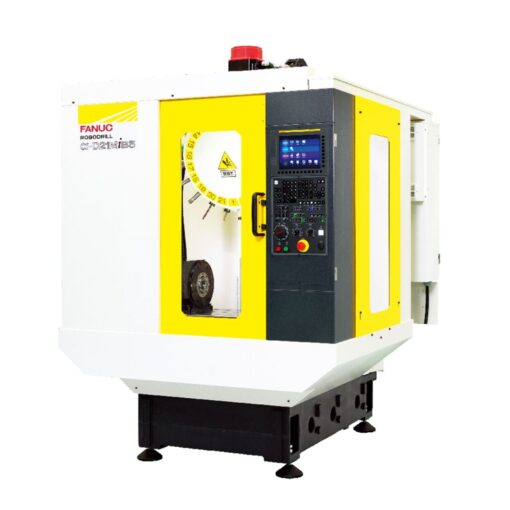

Fanuc Robodrill α-D21MiB5 (New)

Request a quote

Categories: CNC Machine, Drilling machine, New CNC Machine Tags: New CNC machine, New CNC milling machine, New Fanuc CNC Machine

Description

The FANUC ROBODRILL α-DiB Plus series (Standard version/Advanced version) is high-speed, high-precision and high-efficiency Compact Machining center with spindle taper size of No.30.

		Travel [mm]			Control block
X-axis		300	500	700
Y-axis		300+100	400
Z-axis		330
Tool storage capacity	21 tools	α-D21SiB5	α-D21MiB5	α-D21LiB5	Series 31i-B5
	14 tools	α-D14SiB5	α-D14MiB5	α-D14LiB5	Series 31i-B5
	21 tools	α-D21SiB	α-D21MiB	α-D21LiB	Series 31i-B
	14 tools	α-D14SiB	α-D14MiB	α-D14LiB	Series 31i-B

Wide variety of spindle

Optimum spindle selectable according to application

Spindle spec.	Max. speed	Application
Standard	10000 min^-1	Wide range machining use
High torque		Heavy machining of steel parts (Max. 100N·m)
High acceleration		High speed and high efficiency machining of aluminum parts
Tapping	12000 min^-1	High cycle light machining of aluminum parts
High speed	24000 min^-1	High speed machining with small diameter tools
